Tractor Sub Soiler

Tractor Sub Soiler About

Sub Soiler is primary tillage deep plough working up to 55 cm depth approx. To ensure development of crop root system of proper depth and environment. The subsoiler increase natureal fertility of soil as deep tillage provides enough circulation of air, moisture and sunlight into soil. It is an inexpensive implement and it provided a simple and economical way to obtail boosting crop yield. Depth can be adjusted by leg hole & top links, Shear bolt protection available in all sub soiler adjustable width of ploughing available for sub-soiler.

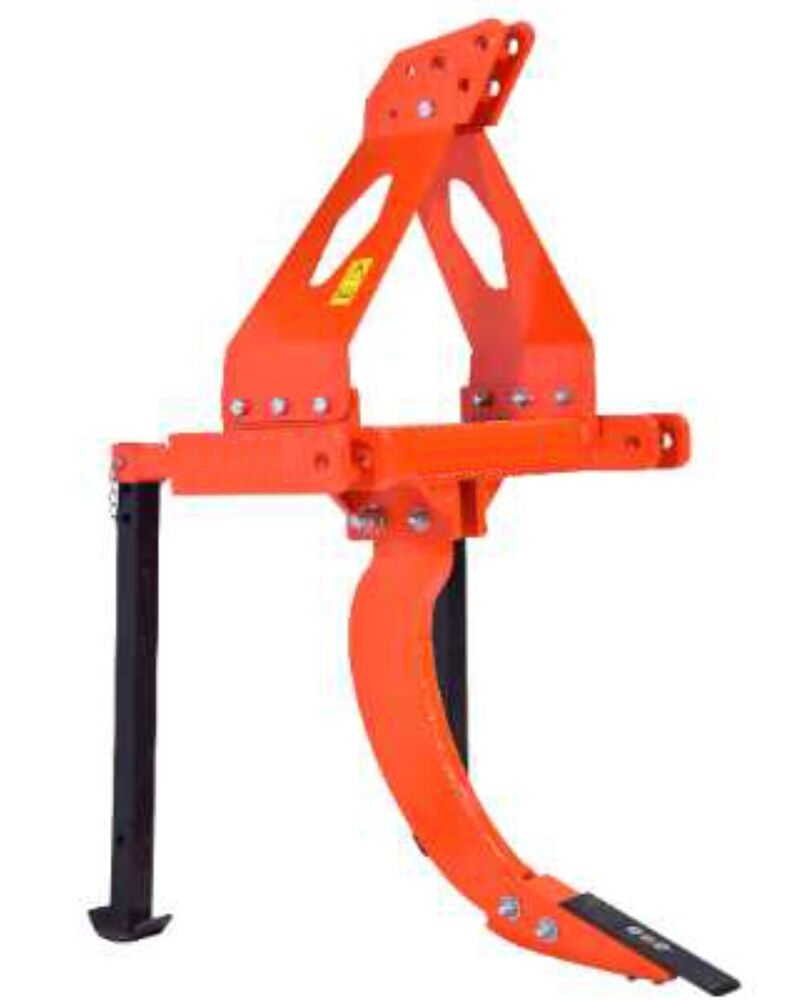

Description: 1 Tyne Sub Soiler

Main Frame Size : Box Frame 100 x 100 mm

Type Mounting: Three Point Hitch Linkage (Cat II)

Overall Length: 860 mm

Overall Width: 850 mm

Overall Height: 1470 mm

Weight: 165 mm

Recommended Tractor Power: 45 - 55 HP

Working Depth Range : 400 mm (Depends on soil moisture and soild condition)

Tyne Size / Shovel Material: 150 x 25 mm / EN8

Description: 2 Tyne Sub Soiler

Main Frame Size : Box Frame 100 x 100 mm

Type Mounting: Three Point Hitch Linkage (Cat II)

Overall Length: 860 mm

Overall Width: 1340 mm

Overall Height: 1470 mm

Weight: 225 mm

Recommended Tractor Power: 55 - 65 HP

Working Depth Range : 400 mm (Depends on soil moisture and soild condition)

Tyne Size / Shovel Material: 150 x 25 mm / EN8

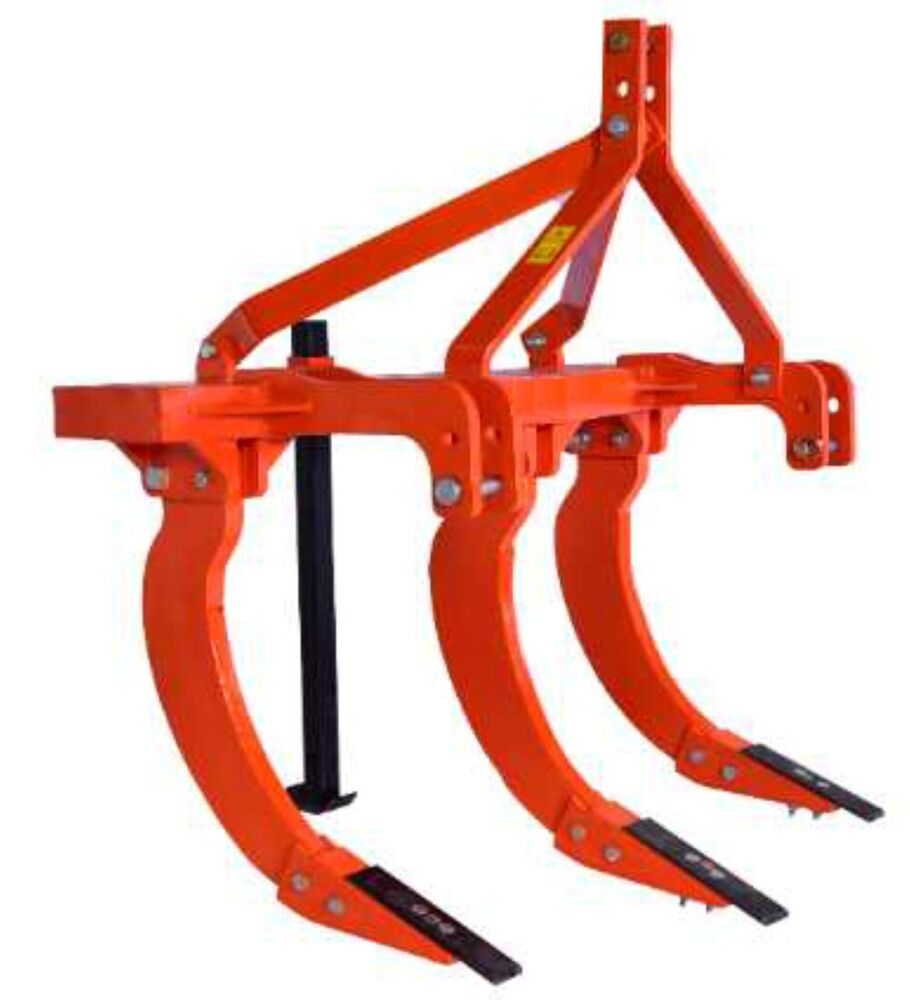

Description: 3 Tyne Sub Soiler

Main Frame Size : Box Frame 100 x 100 mm

Type Mounting: Three Point Hitch Linkage (Cat II)

Overall Length: 1420 mm

Overall Width: 1030 mm

Overall Height: 1470 mm

Weight: 260 mm

Recommended Tractor Power: 65 - 80 HP

Working Depth Range : 400 mm (Depends on soil moisture and soild condition)

Tyne Size / Shovel Material: 150 x 25 mm / EN8

Description: 1 Tyne Sub Soiler

Main Frame Size : Rec. Box Frame

Type Mounting: Three Point Hitch Linkage (Cat II)

Overall Length: 692 mm

Overall Width: 800 mm

Overall Height: 1445 mm

Weight: 105 mm

Recommended Tractor Power: 45 - 55 HP

Working Depth Range : 500 mm (Depends on soil moisture and soild condition)

Tyne Size / Shovel Material: 150 x 25 mm / EN8

Description: 2 Tyne Sub Soiler

Main Frame Size : Rec. Box Frame

Type Mounting: Three Point Hitch Linkage (Cat II)

Overall Length: 1200 mm

Overall Width: 800 mm

Overall Height: 1445 mm

Weight: 395 mm

Recommended Tractor Power: 55 - 65 HP

Working Depth Range : 500 mm (Depends on soil moisture and soild condition)

Tyne Size / Shovel Material: 150 x 25 mm / EN8

Description: 3 Tyne Sub Soiler

Main Frame Size : Rec. Box Frame

Type Mounting: Three Point Hitch Linkage (Cat II)

Overall Length: 1200 mm

Overall Width: 1500 mm

Overall Height: 1445 mm

Weight: 550 mm

Recommended Tractor Power: 65 - 80 HP

Working Depth Range : 500 mm (Depends on soil moisture and soild condition)

Tyne Size / Shovel Material: 150 x 25 mm / EN8
