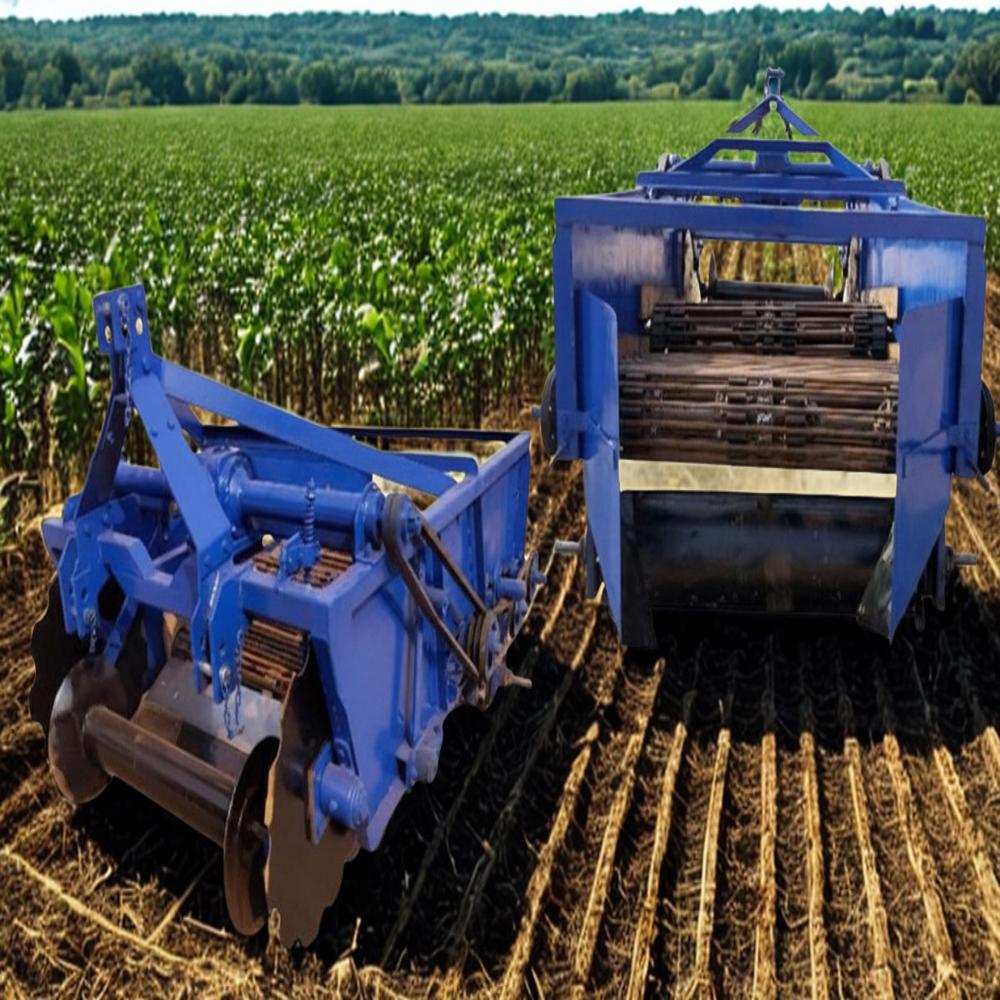

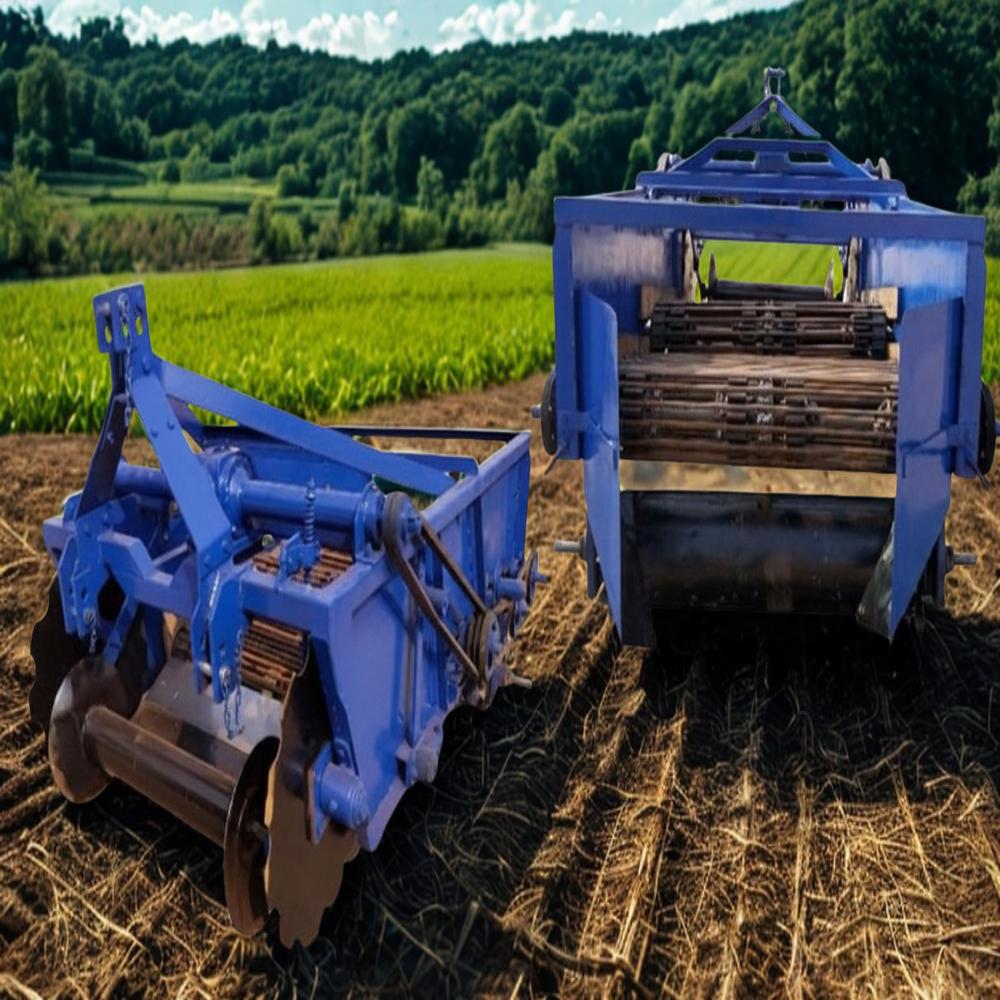

2 Row Double Conveyor Potato Digger

Tractor mounted two row digger elevator with shive system with double frog nose type with to high carbon steel disc of 24 inches fully adjustable has two wheels at the rear to maintain angle of elevation to have nice expose potatoes. Two elevator conveyor belt with double adjustable angle one below the other is designed to suit the different crops. Fully enclosed gears run in oil through C & V Type belt and pulley through PTO shaft which get drive from gear box working width and depth of two row of 609 mm to 762 mm subject to variation and adjustable. Working capacity is 6-7 acre per day according to the soil conditions. Power required any make of tractor 45 HP & above with the Hydraulic lift. The double conveyor mechanism helps in destroying the soil clouds and ensure 100% exposure for potatoes even in hard soil conditions and can be operated on high speed after resulting in less time to complete harvesting as compare to normal digger. The mini shive system, helps in placing potatoes on the soil from digger

Technical Specification

Description: SCPD - 2R

Machine Name: 2 Row Double Conveyor Potato Digger

Harvesting Row: 2

Frame Box: 65*65*6 mm & 3 mm Sheet

Row Spacing: 60 to 67.5 cm

Funtion: Potato Harvester

PTO Rotation (RPM): 540 / 1000

Working Efficiency: High Out Put

Depth Control: Hydraulic

Machine Drive: PTO

Front Blade (Easily Changeable): 1 Blade, 6 mm Thickness (High Carbon Steel)

Belt Drive Row: C Groove with Belt

Conveyor: Imported PVC Conveor Belt

Conveyor Rod (mm): 14 mm Thickness (High Steel Materl)

Disc: 2 Disc (High Carbon Steel)

Conveyor: 4

Tyre: 2 Pcs

Productivities: 3 Km / h

Required Power (HP): 45 HP & above

Harvesting Capacity (Per Acre): 1.5 Acre / h

Transportation: Hydraulic Trailed

Linkage Category Point Linkage: Tractor Hydraulic with Three Point Linkage

Roller: Front & Back Roller (Option Available)

Roller Surface: Back Side of Digger for Making

Dimension

Length: 2590 mm

Width: 1678 mm

Height: 1280 mm

Weight: 800 Kgs

Features:

* Save the man power & time required for harvesting

* The total concept of the harvester is based on high output to ensure maximum return on your investment

* Its gear box is designed with quality conponents promises longer life cycle of the implement

* Tested by government of India

* Double Conveyor ensure maximum exposure to potatoes even in hard soil

Advantages:

* Potato Digger is very simple and compact structure and can connect with the tractor easily

* It machine is suitable for all kinds of soil, such as sandy, clay soil and black soil

* It saves the maximum time of operation than the manual

* It completes the operation without damaging the potatoes

* Less man power require for operation

* Cover more area as compare to other digger (Approx 2 times faster)
