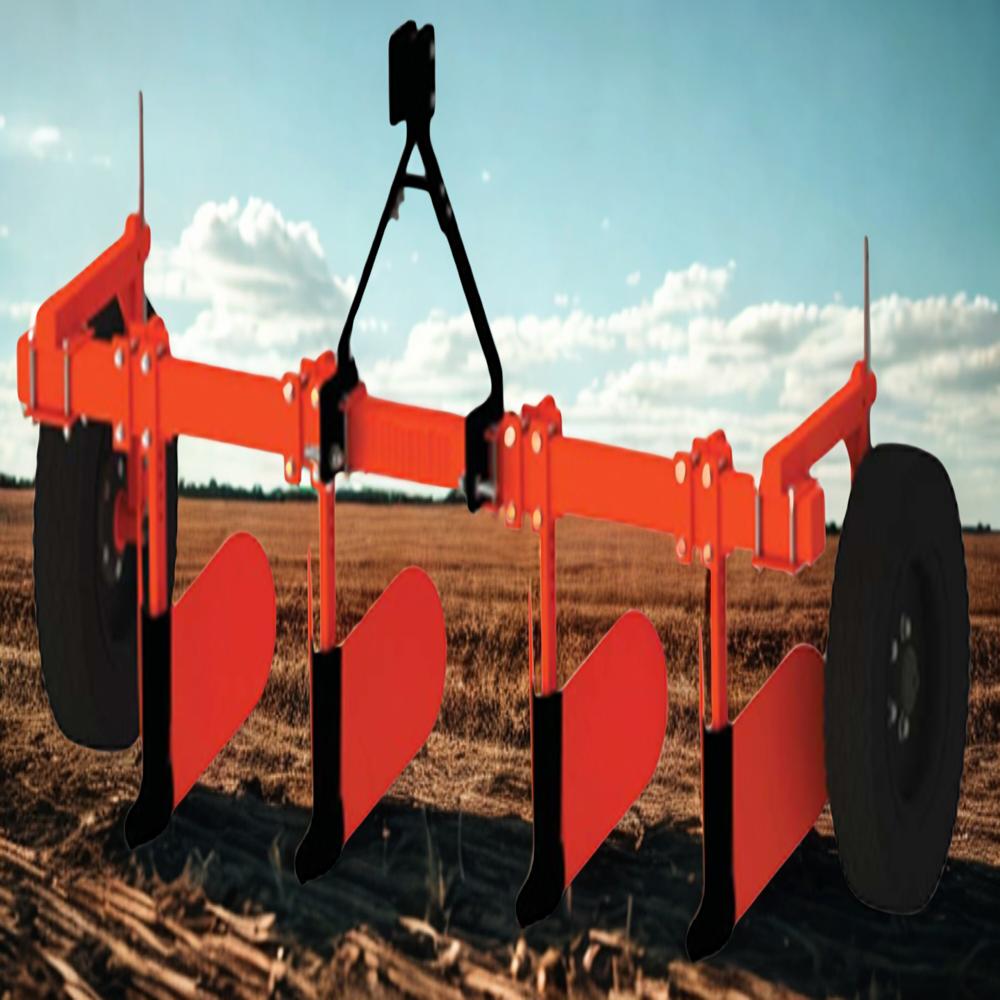

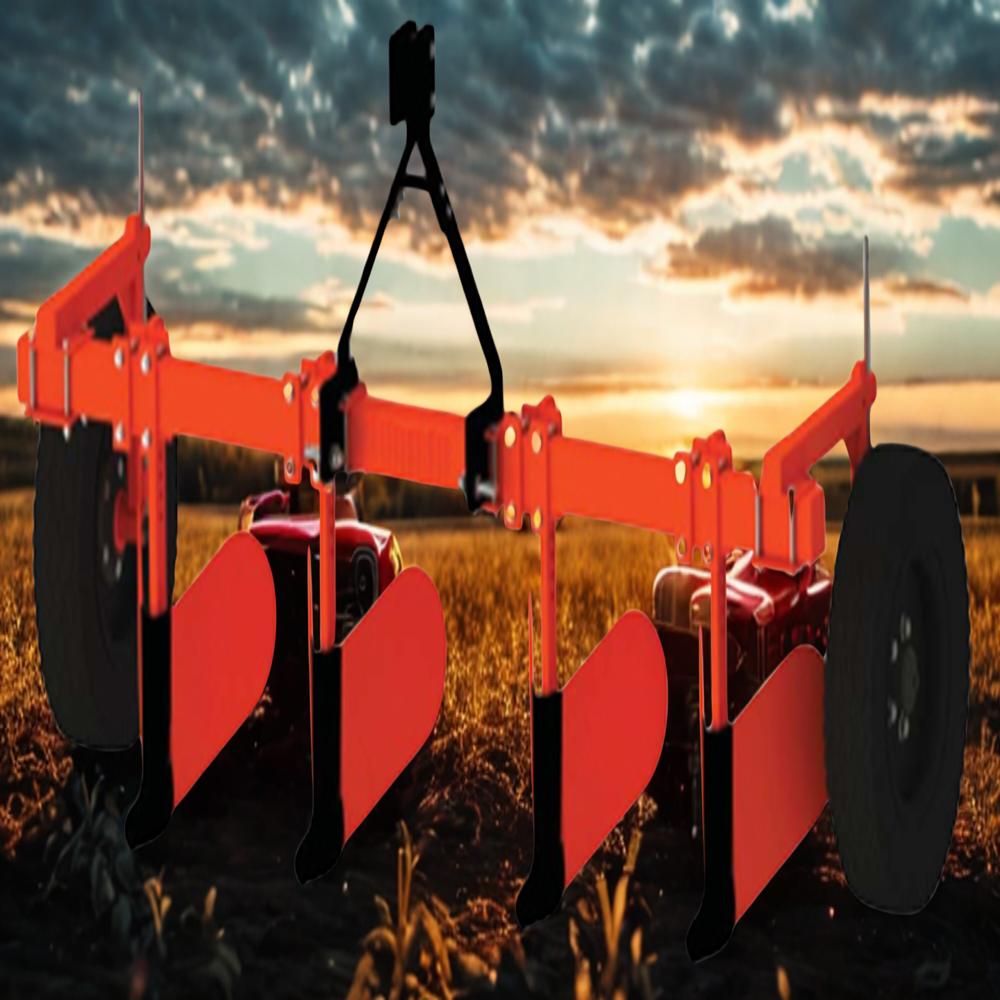

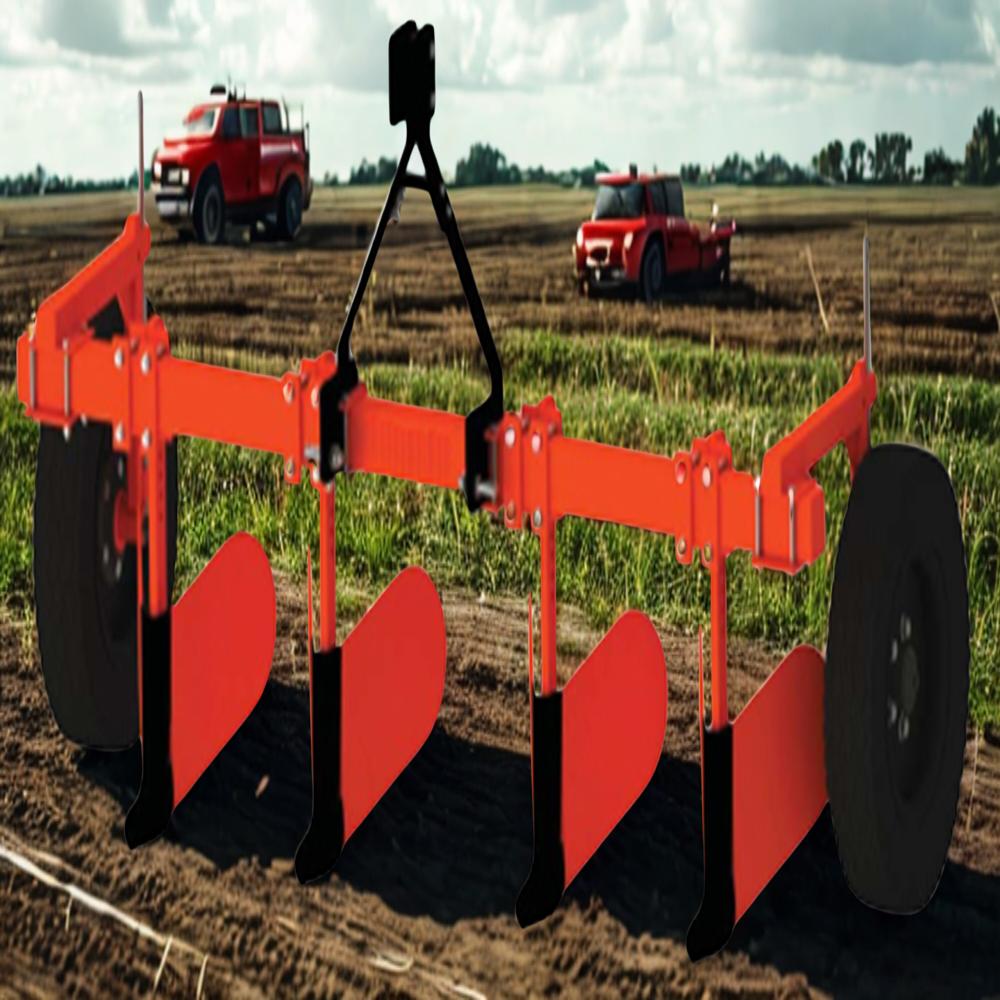

Furrow Ridger with Tyre

Price 1400.0 USD ($)/ Number

Get a Price/Quote

MOQ : 1 Number

Furrow Ridger with Tyre Specification

Noise Level
Low, depends on tractor db

Tool Type
Furrow Ridger

Shape
Frame with adjustable discs and tyre

Usage & Applications
Ideal for ridge or furrow formation in agriculture, suitable for various soils

Features
Fitted rubber tire for depth control; Adjustable furrow width and depth; Robust construction

Product Type
Agricultural Implement

General Use
Agricultural

Capacity
2 Furrows per pass Pcs/hr

Weight (kg)
490 Kilograms (kg)

Type
Agricultural Tools

Drive Type

Power
35 HP and above (suggested tractor power) Horsepower (HP)

Power Source
other

Transmission Type

Engine Type
Other

Fuel Tank Capacity
NA Kilogram(Kg)

Engine Oil Capacity
NA Kilogram(Kg)

Disc Diameter
560 mm (approx.) Millimeter (mm)

Tilling Scope
Making adjustable furrows of various sizes

Machine Speed
Depends on tractor speed Km/s

Production Output
High-makes furrows quickly and efficiently Sets/Hour

Material
Other

Dimension (L*W*H)
1700 x 850 x 1100 mm (approx.) Meter (m)

Color
Red

Warranty
NA

Compatibility
Suitable for Category I & II Three Point Linkages

Corrosion Resistance
Yes, with anti-corrosive paint

Frame Material
Heavy-duty MS Channel

Adjustable Angle
Yes, for both discs

Safety
Fitted with guard for moving parts

Disc Material
High-Carbon Steel

Surface Finish
Powder Coated/Painted

Number of Discs
2 (standard)

Maintenance
Easy, requires periodic lubrication

Working Width
Adjustable, typically 660-910 mm

Tyre Size
13 x 5.00-6 (may vary by model)

Depth of Operation
Up to 300 mm

Furrow Ridger with Tyre Trade Information

Minimum Order Quantity
1 Number

FOB Port
Any Port in India

Payment Terms
Telegraphic Transfer (T/T)

Supply Ability
5 Per Month

Delivery Time
3 Week

Packaging Details
Export worthy packaging

Main Export Market(s)
Eastern Europe, Central America, North America, South America, Asia, Australia, Western Europe, Middle East, Africa

Main Domestic Market
All India

About Furrow Ridger with Tyre

It is best suited for medium to light soils. It is used for simple ridge making which makes it useful for planting vegetables & crops and allows water management in the fields. It is a basic implement which makes it very easy to use. It can be easily transported by mounting it directly to the three point linkage of the tractor.

Its robust pipe frame provides adequate weight & strength to the ridger, allowing it to make bunds / ridges properly.

The distance between furrows can be adjusted which allows the farmer to vary the height width of the ridge / bund.

The ergonomically designed shoves used in this tiller have a unique composition which ensures high durability & efficient working.

The working depth of the ridger / bund can be controlled using the tyres provided with the ridger

4 Furrow : Mounting CAT- 3 Point Linkage (CAT II), Main Frame - 100 x 50, Furrow - 5 mm thick, Type of Furrow - M.S., Working Width Range (mm Approx.) - Adjustable, Spacing Between - Adjustable, Working Depth Range (mm Approx.) - 210 to 250, Weight (Approx. in Kgs) - 350, Suitable HP Range - 50 - 70

5 Furrow : Mounting CAT - 3 Point Linkage (CAT II), Main Frame - 100 x 50, Furrow - 5 mm thick, Type of Furrow - M.S., Working Width Range (mm Approx.) - Adjustable, Spacing Between - Adjustable, Working Depth Range (mm Approx.) - 210 to 250, Weight (Approx. in Kgs) - 490, Suitable HP Range - 70 - 90

Engineered for Agricultural Efficiency

With a high-quality mild steel frame and two adjustable high-carbon steel discs, the Furrow Ridger provides precise control over both furrow width and depth. It delivers quick formation of furrows tailored to your crop and field requirements, ensuring maximum productivity with every pass.

Built to Last in Tough Conditions

Constructed from heavy-duty materials and finished with anti-corrosive paint, this ridger withstands rigorous use in diverse soil conditions. Essential safety features, such as guards for moving parts, combined with a powder-coated finish, ensure longevity and reduced risk during operation.

Simple Use and Maintenance

Designed for Category I & II three-point linkage tractors, it is easy to attach and operate. Maintenance needs are minimal-periodic lubrication keeps it running efficiently without unnecessary downtime, supporting continuous, high-volume agricultural work.

FAQ's of Furrow Ridger with Tyre:

Q: How do I adjust the furrow width and depth on the Furrow Ridger with Tyre?

A: You can easily adjust both the furrow width (typically between 660-910 mm) and depth (up to 300 mm) using the provided settings on the adjustable discs and the depth control tyre. This allows you to customise furrow dimensions based on crop type and field conditions.

Q: What is the process for attaching the Furrow Ridger to my tractor?

A: The ridger is compatible with Category I and II three-point linkages. Simply align the ridger's frame with your tractor's linkage points, secure it using the provided pins, and ensure the power take-off (PTO) is connected for mechanical operation. It is recommended to use tractors with at least 35 HP.

Q: When should periodic maintenance be carried out?

A: Routine maintenance should be conducted after every major use or at least once per season. Key maintenance tasks include lubricating the bearings and any moving parts, checking bolts for tightness, and inspecting the tyre and discs for wear or damage.

Q: Where can the Furrow Ridger with Tyre be used effectively?

A: This tool is ideal for agricultural operations requiring ridge or furrow creation, and it performs effectively on various soil types. It is widely used by farmers, exporters, and manufacturers across India and suitable for both small and large-scale fields.

Q: What are the main benefits of using this furrow ridger in the field?

A: The ridger allows for quick and efficient formation of two furrows per pass, greatly improving field preparation speed. Its robust construction and adjustable features enhance precision, while the fitted tyre ensures consistent depth control and reduces soil compaction.

Q: How does the safety guard on the ridger help during operation?

A: A fitted guard covers moving parts of the ridger, helping to prevent accidental contact and reduce the risk of injury during use. This safety measure is especially important when operating powerful tractor-mounted equipment.
