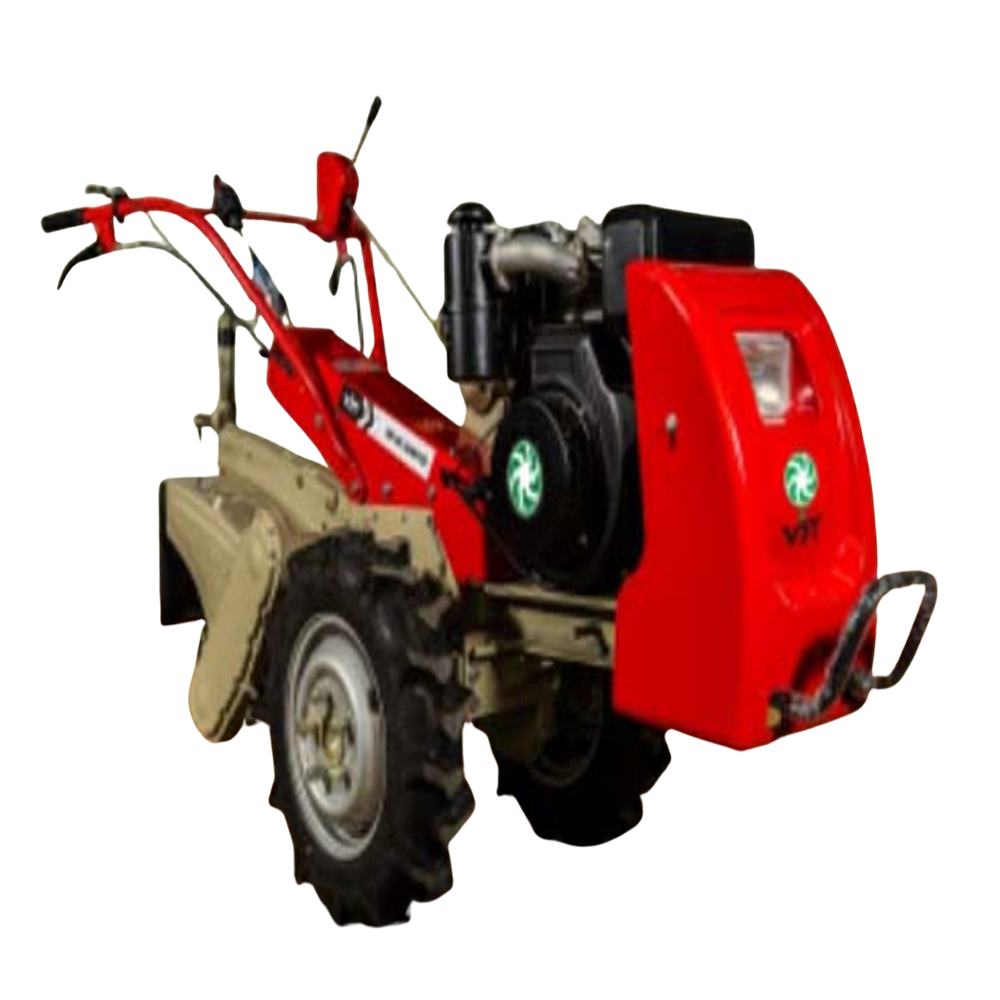

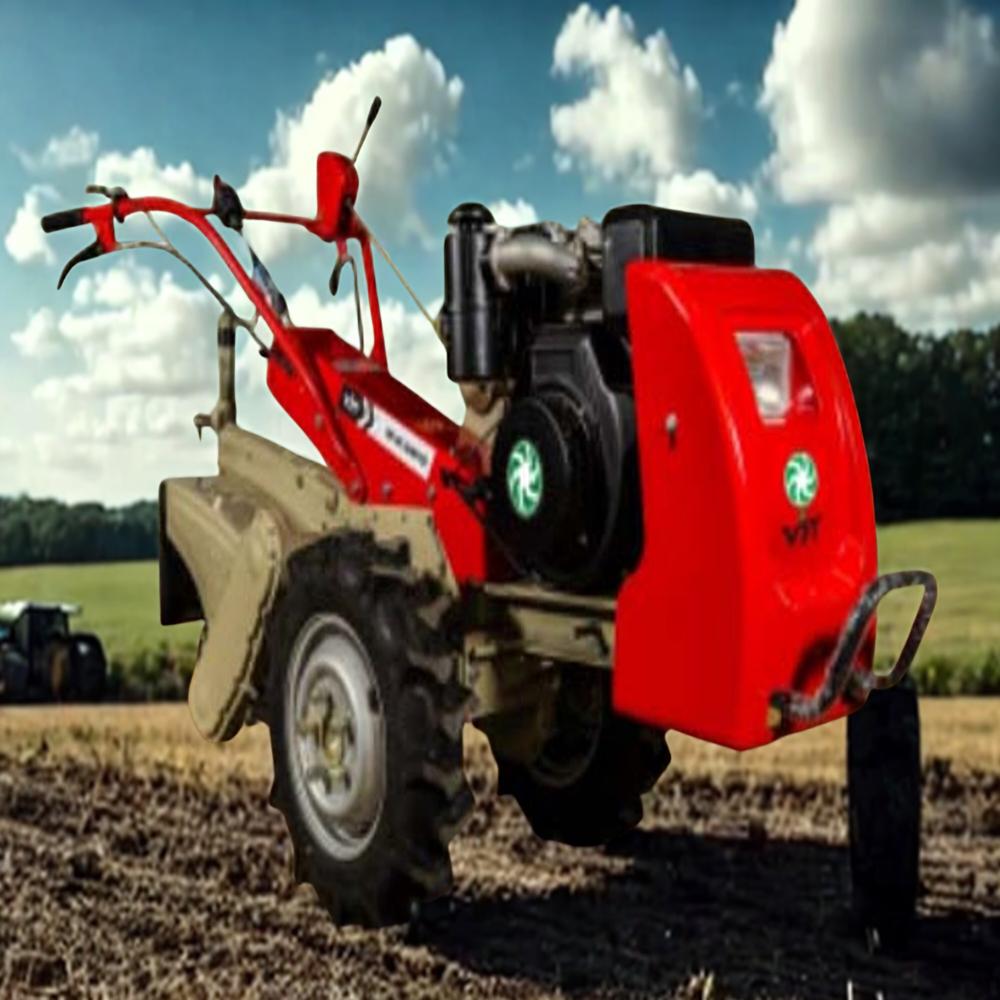

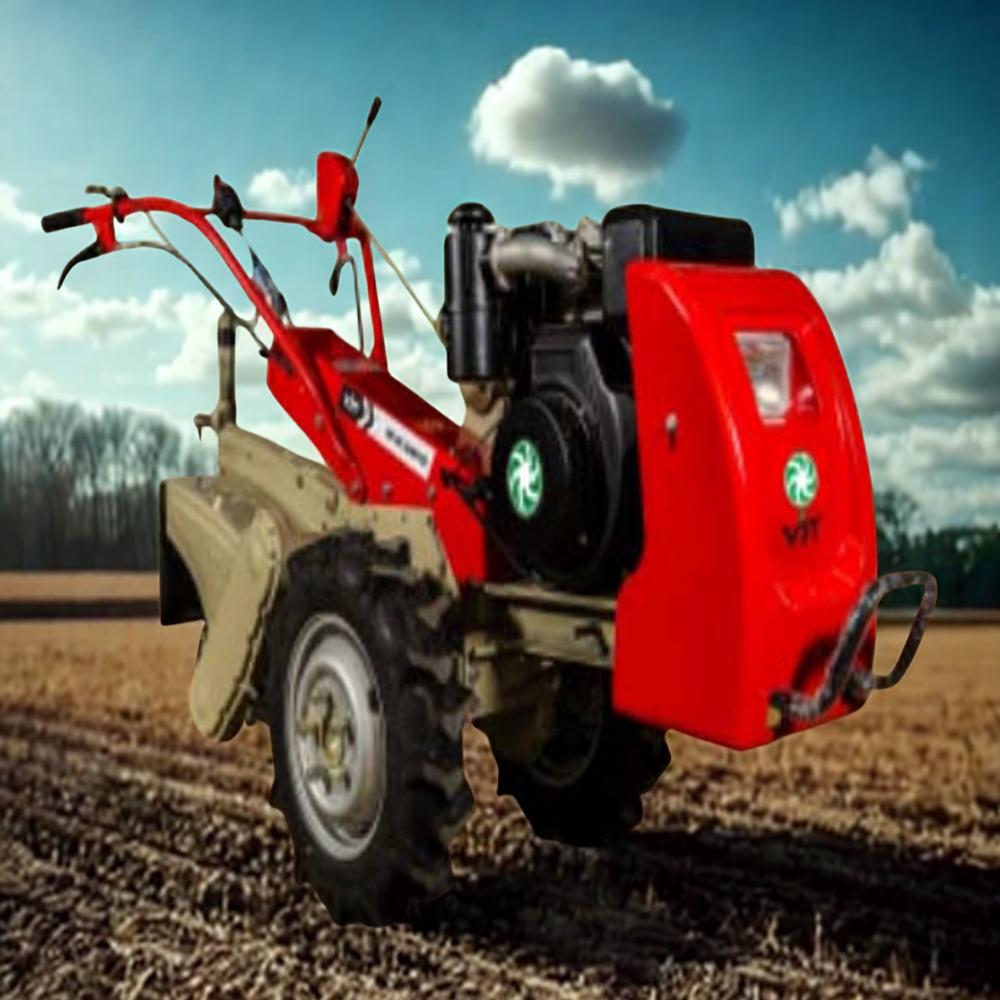

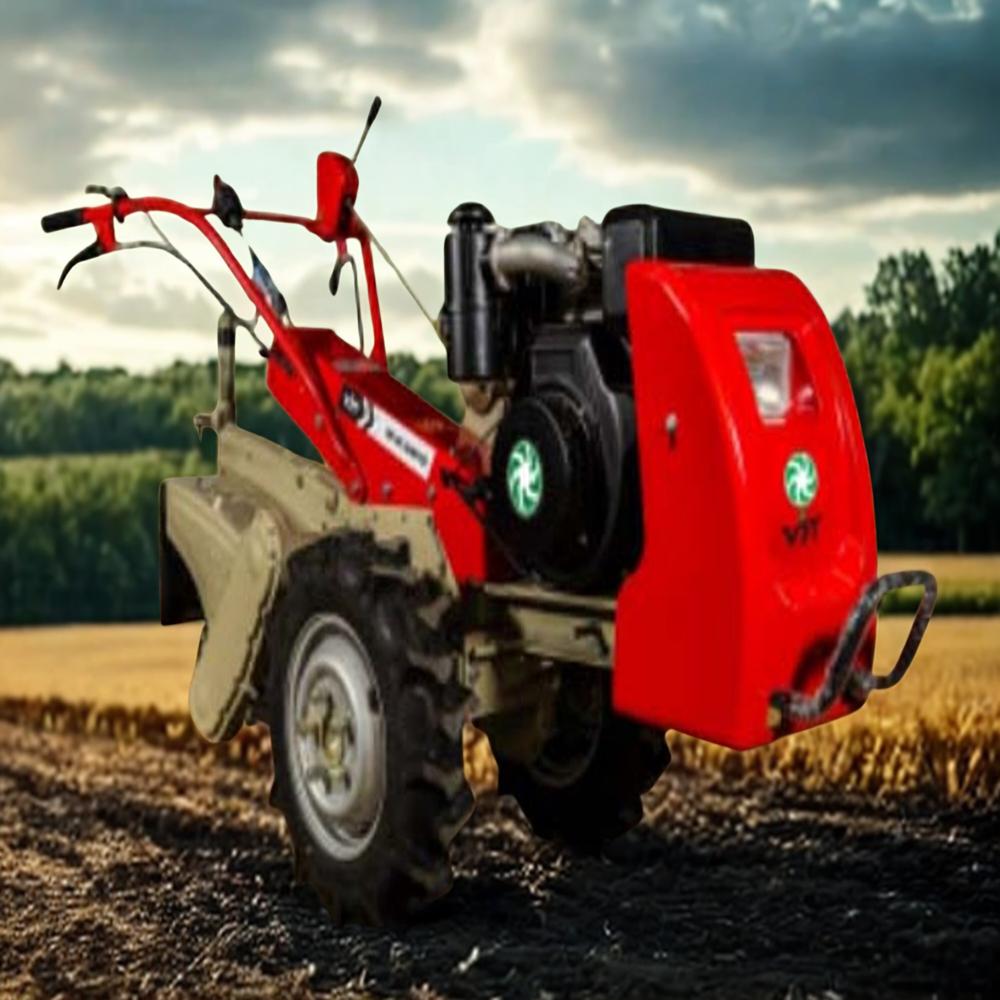

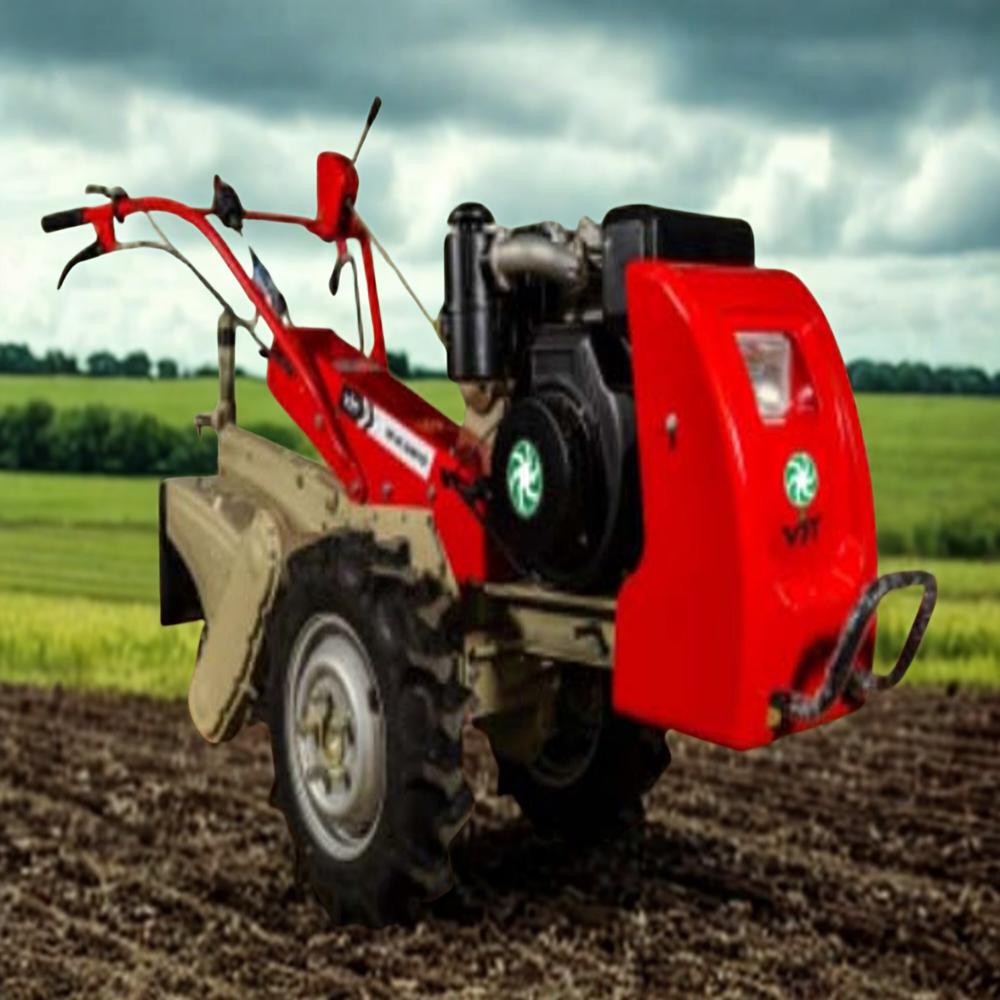

Power Tiller

About Power Tiller

Model: VST 95 DI Ignito (9HP)

Engine

Type: Horizontal, air Cooled, 4 Stroke Diesel Engine

Power: 9 HP / 3600 RPM

Maximum Torque: 1.9 kg-m@2500 RPM

Bore x Stroke: 86 x 75

Displacement: 418 CC

Specific Fuel consumption (SFC): 220 g/hp/hr

Air Cleaner: Oil Batch Type

Starting System: Self-Start + Recoil

Lighting System: 12 Volts/35 Watts

Std. Pulley (Dia): 73 mm

Weight of Engine (Dry): 46 kg

Rotary

Type of Drive: Side Drive Rotary with Chain & Sorocket

No. of Tynes: 10

Tilling Width: 340 mm (maximum)

Tilling Depth: 190 mm (maximum)

Weight of the Rotary Tiller: 50 kgs

Chassis & Transmission

Transmission Model: CT - 90

Transmission Type: Combination of Constant & Sliding Mesh

Clutch: Multiple Plate Dry Disc Type

Steering: Independent Dog Clutch

No. of Speed: 08 (Forward 06 & Reverse 02)

Speed Range: Forward 1.42 - 11.8 kmph / Reverse 1.23 - 4.41 kmph

Brake System: Hand Operated Internal Expanding Metalic Shoe Type

PTO Shaft: 16 Teeth 30 Diameter

Weight of Transmission: 120 Kgs

Fuel System

Fuel: High Speed Diesel

Fuel Tank Capacity: 4.3 ltrs

Overall Dimensions & Weight

Length x width x Height: 2031 x 755 x 1272 (mm)

Overall Weight: 340 Kgs

Ground Clearance: 150 mm approx.
